Automated Surface Mount Technology

SMT Assembly

Our fully automated SMT line delivers high-precision assembly for modern electronics. Capable of placing components down to 0402 size with exceptional accuracy.

Get a Quote
Capabilities

What We Offer

  • Down to 0402 component placement
  • PCBs up to 500x370mm
  • 6-zone reflow ovens
  • Double-sided assembly
  • Automated optical inspection
  • High-volume production capable
Equipment

SMT Line 1

  • 8-head and 6-head Pick and Place Machines
  • Auto Stencil Printer
  • 6-zone rail reflow oven
  • Board loading and unloading

SMT Line 2

  • 8-head Pick and Place Machine
  • 6-zone mesh-only reflow oven
Quality Assurance

Automated Optical Inspection

Our AOI (Automated Optical Inspection) system provides comprehensive quality control for every board we assemble. Using high-resolution cameras and advanced software algorithms, we detect component placement errors, solder defects, and polarity issues before boards leave our facility.

This automated inspection process ensures consistent quality across high-volume production runs whilst reducing manual inspection time. Every SMT assembly passes through our AOI system as part of our comprehensive quality control process.

  • Component presence and polarity verification
  • Solder joint quality inspection
  • High-resolution defect detection

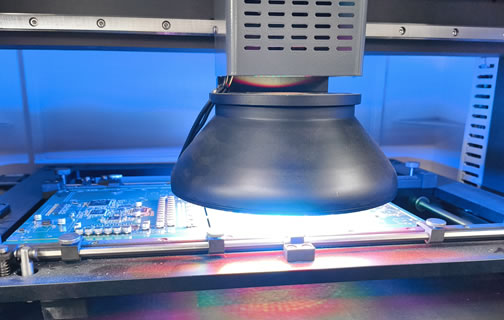

AOI Machine
Gallery

Our SMT Work

SMT Assembly Work 1
SMT Assembly Work 2

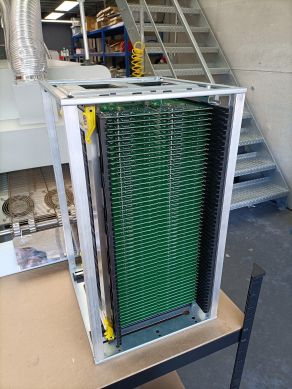

SMT Assembly Work 3

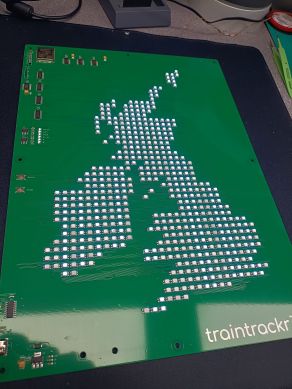

SMT Assembly Work 4
SMT Assembly Work 5
SMT Assembly Work 6

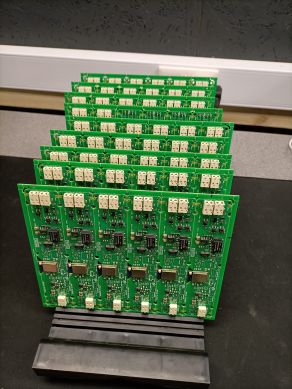

SMT Assembly Work 7

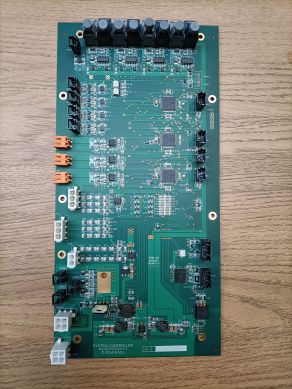

SMT Assembly Work 8

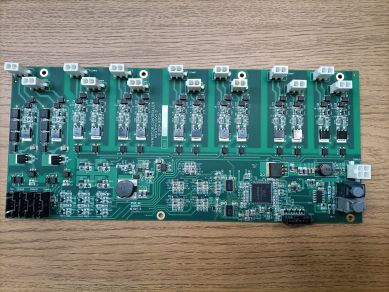

SMT Assembly Work 9

Ready to Start?

Get a detailed quote for your SMT assembly project. We respond within 48 hours.

Request Quote
